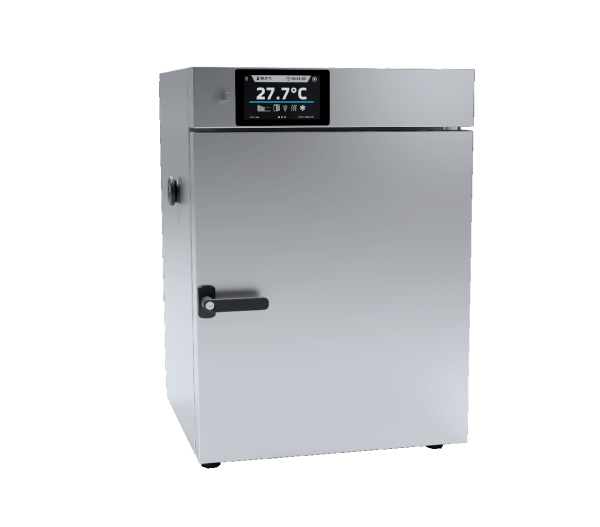

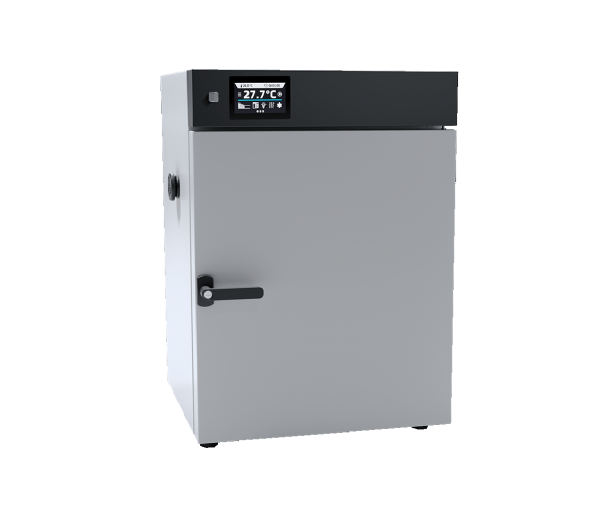

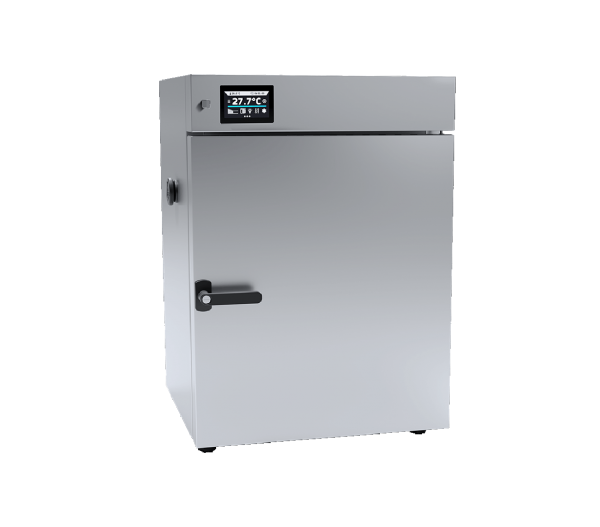

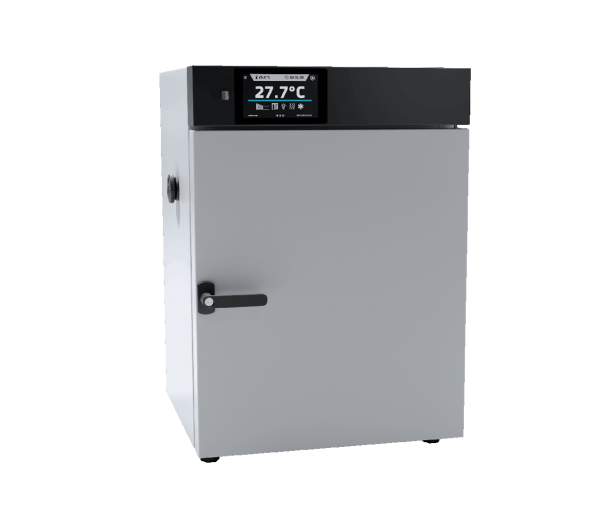

SLW75 SMART – Varmeskab/tørreovn med blæser, 75 liter

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	75
working capacity [l]	75
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	5°C above ambient temperature … +300°C
temperature resolution every … [°C]	0,1
temperature fluctuation at 105°C [+/-°C]*	0,2
temperature variation at 105°C [+/-°C]*	2,0
temperature protection	class 2.0 to DIN 12880 / class 3.1 (option)
CHAMBER
door type	solid / door with viewing window (option)
interior
Smart	acid-proof stainless steel to DIN 1.4301
IG Smart	acid-proof stainless steel to DIN 1.4301
housing
Smart	powder coated sheet
IG Smart	stainless steel linen finish
overall dims [mm] /1/
width A	590
height B	850
depth C	620
internal dims [mm]
width D	400
height E	530
depth F	360
shelves (standard | max)	2 | 5
max shelf workload [kg] /2/	25
– reinforced shelf version (PW) [kg] /3/	50
max unit workload [kg]	40
– reinforced unit version (W) [kg] /4/	80
weight [kg]	60
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	1700
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	75
working capacity [l]	75
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	5°C above ambient temperature … +300°C
temperature resolution every … [°C]	0,1
temperature fluctuation at 105°C [+/-°C]*	0,2
temperature variation at 105°C [+/-°C]*	2,0
temperature protection	class 3.1 to DIN 12880
CHAMBER
door type	solid / door with viewing window (option)
interior
Smart PRO	acid-proof stainless steel to DIN 1.4301
IG Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
Smart PRO	powder coated sheet
IG Smart PRO	stainless steel linen finish
overall dims [mm] /1/
width A	590
height B	850
depth C	620
internal dims [mm]
width D	400
height E	530
depth F	360
shelves (standard | max)	2 | 5
max shelf workload [kg] /2/	25
– reinforced shelf version (PW) [kg] /3/	50
max unit workload [kg]	40
– reinforced unit version (W) [kg] /4/	80
weight [kg]	60
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	1700
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version
