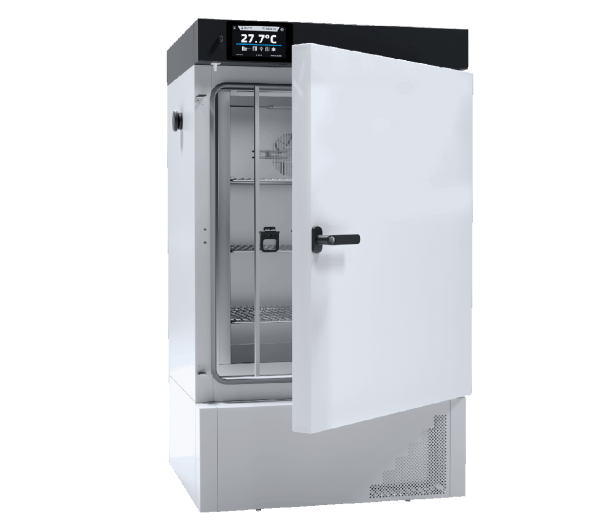

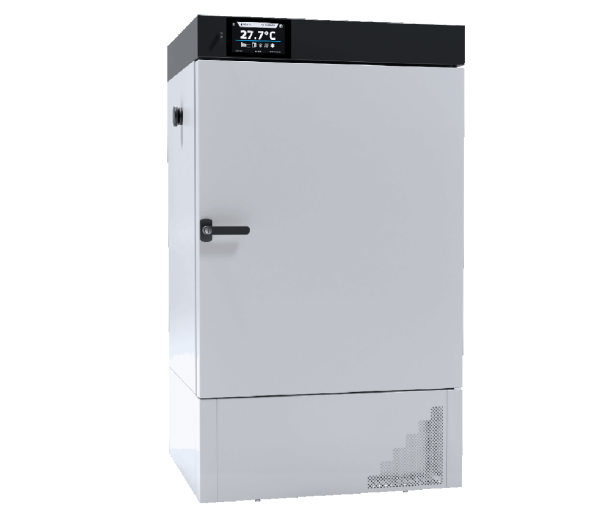

ILW240 SMART – Køleinkubator, 245 liter

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	245
working capacity [l]	245
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+70 / -10…+70 (option)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,2
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 2.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart	acid-proof stainless steel to DIN 1.4301

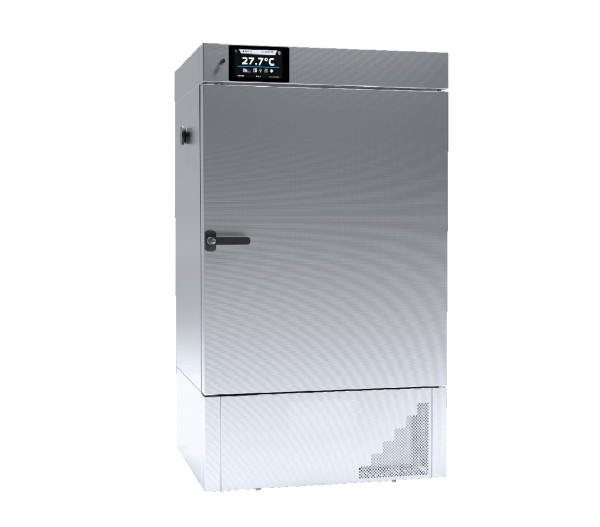

IG Smart	acid-proof stainless steel to DIN 1.4301
housing
Smart	powder coated sheet
IG Smart	stainless steel linen finish
overall dims [mm] /1/
width A	820
height B	1430
depth C	780
internal dims [mm]
width D	600
height E	800
depth F	510
shelves (standard | max)	3 | 10
max shelf workload [kg] /2/	25
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	90
– reinforced unit version (W) [kg] /4/	300
weight [kg]	140
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	900
refrigerant	R290 / GWP=3
warranty	24 months

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	245
working capacity [l]	245
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+100 / -10…+100 (option)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,2
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart PRO	acid-proof stainless steel to DIN 1.4301
IG Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
Smart PRO	powder coated sheet
IG Smart PRO	stainless steel linen finish
overall dims [mm] /1/
width A	820
height B	1430
depth C	780
internal dims [mm]
width D	600
height E	800
depth F	510
shelves (standard | max)	3 | 10
max shelf workload [kg] /2/	25
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	90
– reinforced unit version (W) [kg] /4/	300
weight [kg]	140
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	900
refrigerant	R290 / GWP=3
warranty	24 months

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door
