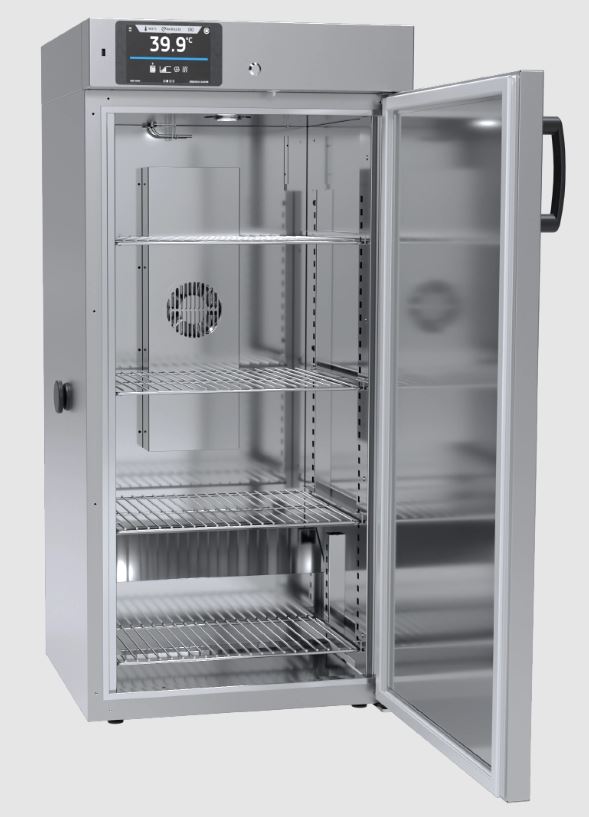

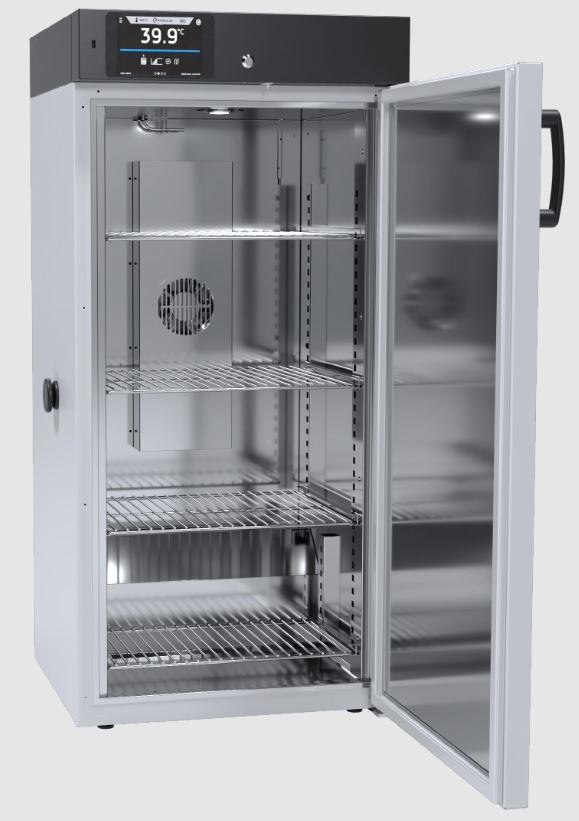

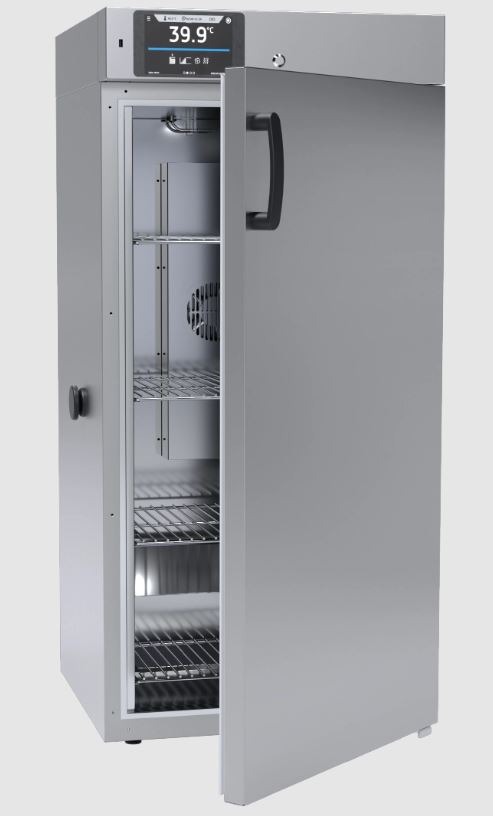

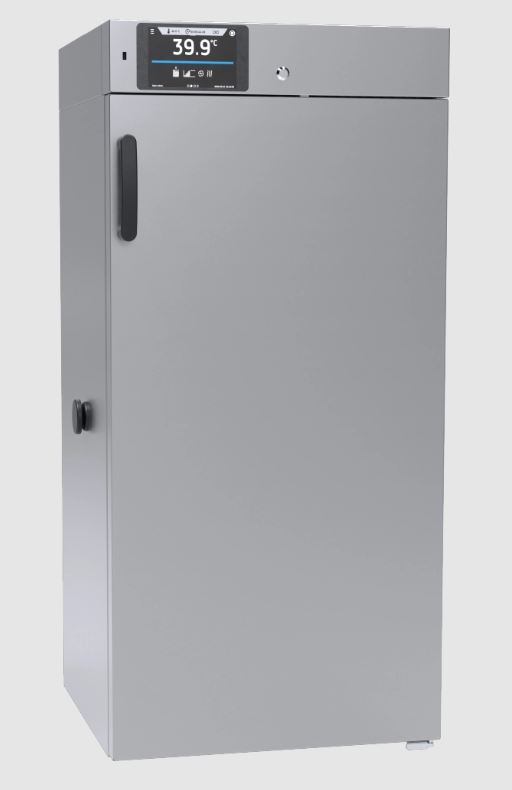

STP 4 SMART, SMART PRO – Peltier-kølet inkubator, 250 liter

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	250
working capacity [l]	203
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+40 / +70 (option)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,1
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 1.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	pełne / podwójne/5/ (opcja)
interior
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	acid-proof stainless steel to DIN 1.4301
PS Smart	acid-proof stainless steel to DIN 1.4301
housing
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	600
height B	1300
depth C	815
internal dims [mm]
width D	480
width D’	520
height E	1060
depth F	420
depth F’	480
depth G	320
height H	840
shelves (standard | max)	4 | 6
max shelf workload [kg] /2/	10
max unit workload [kg]	50
weight [kg]	69
ELECTRICAL PARAMETERS
Energy consumption at 37°C [Wh/h]	1,7
voltage	230V 50-60Hz
nominal power [W]	250
warranty	24 months
manufacturer	POL-EKO®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. – T average min. ) / 2; parameters given for the chamber above the bottom step
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	250
working capacity [l]	203
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	+3…+70
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,1
temperature variation at 37°C [+/-°C]*	0,3
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	pełne / podwójne/5/ (opcja)
interior
C Smart PRO	stainless steel to DIN 1.4016
CS Smart PRO	stainless steel to DIN 1.4016
P Smart PRO	acid-proof stainless steel to DIN 1.4301
PS Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
C Smart PRO	powder coated sheet
CS Smart PRO	stainless steel polished
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	600
height B	1300
depth C	815
internal dims [mm]
width D	480
width D’	520
height E	1060
depth F	420
depth F’	480
depth G	320
height H	840
shelves (standard | max)	4 | 6
max shelf workload [kg] /2/	10
max unit workload [kg]	50
weight [kg]	69
ELECTRICAL PARAMETERS
Energy consumption at 37°C [Wh/h]	1,7
voltage	230V 50-60Hz
nominal power [W]	250
warranty	24 months
manufacturer	POL-EKO®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. – T average min. ) / 2; parameters given for the chamber above the bottom step
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door
